The DS-7204HTHI-K1 is a versatile 4-channel hybrid DVR from Hikvision supporting up to 8MP high-definition recording and advanced perimeter protection. Combining multi-format analog and IP camera compatibility with efficient H.265 Pro+ compression and 4K HDMI output, it delivers high-quality video surveillance with smart analytics and remote management features.
Product Summary

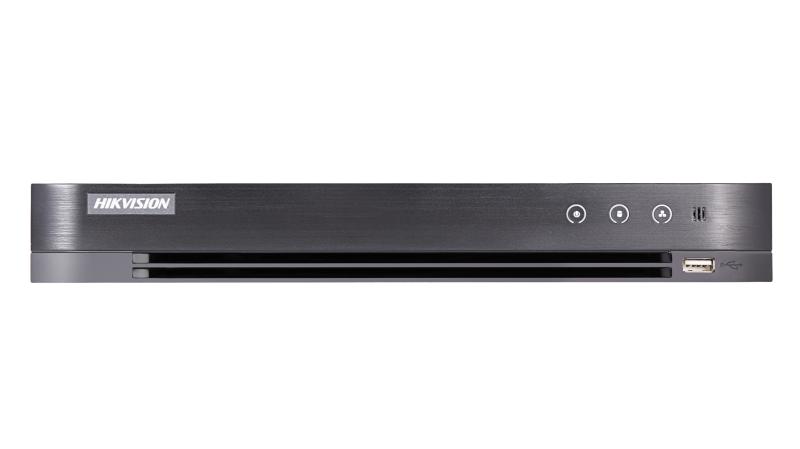

The Hikvision DS-7204HTHI-K1 is a 4-channel Turbo HD hybrid DVR supporting up to 8MP resolution analog cameras and up to 8 IP camera channels. It features advanced H.265 Pro+ compression, perimeter protection, and multi-format video input compatibility, making it ideal for professional-grade surveillance with enhanced video analytics.
Supports 4 analog channels with up to 8 IP camera input channels (expandable)
Compatible with HDTVI, AHD, CVI, CVBS analog formats and IP cameras
Video compression: H.265 Pro+, H.265, H.264+, and H.264 for efficient storage use
High-resolution recording up to 8MP at 15fps, 5MP at 20fps, with multiple resolution options such as 3K, 4MP, 1080p, 720p
Perimeter protection supporting 4-channel line crossing and intrusion detection
Dual-stream support for simultaneous video and audio streaming
Audio compression: G.711u with 64 kbps bitrate
HDMI output up to 4K (3840 x 2160) resolution, plus VGA output
Up to 10TB HDD storage support via 1 SATA port
Motion detection and smart playback features
Network support including TCP/IP, DHCP, Hik-Connect, DDNS, HTTPS, and ONVIF
Two-way audio support via RCA input/output
Remote access and management via Hik-Connect app
Operating temperature: -10ºC to +55ºC
Power supply: 12V DC, max 15W (without hard drives)
| Specification | Details |
|---|---|
| Model Number | DS-7204HTHI-K1 |
| Analog Video Input | 4 channels BNC HDTVI/AHD/CVI/CVBS |
| IP Video Input | Up to 8 channels (expandable) |
| Max Recording Resolution | 8 MP @ 15 fps, 5 MP @ 20 fps, 3K @ 20 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Perimeter Protection | 4 channels Line Crossing and Intrusion Detection |
| Audio | 4-ch RCA input, 1-ch RCA output, Two-way audio support |
| Video Output | HDMI (4K max), VGA (up to 1080p) |
| Storage Interface | 1 SATA port, supports up to 10TB HDD |
| Network Interface | RJ45 10/100/1000 Mbps Ethernet |
| Motion Detection | Supported, with smart playable event search |
| Power Supply | 12V DC, max 15W (without HDD) |
| Dimensions (W×D×H) | 315 × 242 × 45 mm |
| Weight | ≤ 1.5 kg |
| Operating Temperature | -10°C to +55°C |
