Product Details

Key features and specifications:

• Cable Category: Cat6 UTP (Unshielded Twisted Pair).

• Conductors: 4 pairs of 23 AWG solid bare copper for superior conductivity.

• Insulation: High-Density Polyethylene (HDPE) insulation around each conductor.

• Jacket Material: Flame-retardant PVC (FR-PVC) or Low Smoke Zero Halogen (LSZH) for safety.

• Diameter: Approximately 6 mm nominal.

• Supports data speeds up to 1 Gbps (1000 Mbps) at bandwidths up to 250 MHz.

• Compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards.

• Features a central cross separator made of polyethylene to reduce crosstalk between pairs.

• Capacitance and resistance characteristics comply with TIA/EIA-568-C.2 standards.

• Operating temperature range generally -20°C to +75°C.

• Typical length per box/reel: 305 meters.

• Suitable for use in enterprise networks, office LANs, and data centers requiring high-speed reliable connections.

• Certified by UL, ETL, RoHS, and compliant with international standards like ISO/IEC 11801.

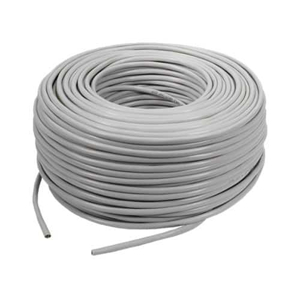

D-Link’s Cat6 cable is commonly available in gray color and packaged in easy-to-pull reels or boxes for convenient installation.
